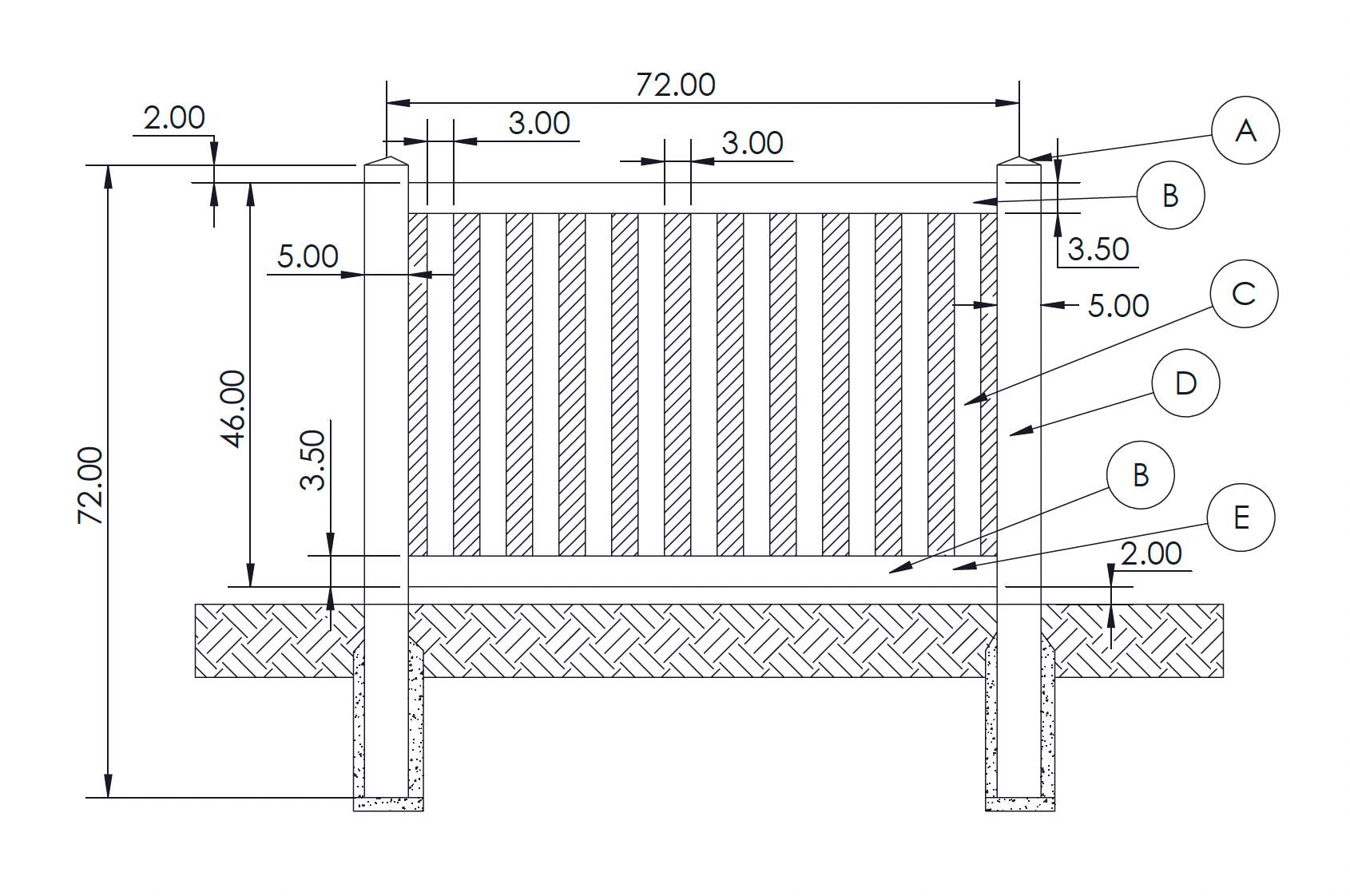

4' × 6' closed picket

2" × 3½"

Hollow Rail

⅞" × 3"

Pickets

4" × 4"

Post

Key	QTY	Item Key	Description
A	2	C44PRYA	4" × 4" Pyramid Cap
B	2	F12N	4" × 4" × 72" Standard Post
C	2	F24E	2" × 3 ½" × 72" Hollow Rail
D	11	F57C	⅞" × 3" × 44" Pickets
E	1	1G24PA288	72" Aluminum P-Channel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

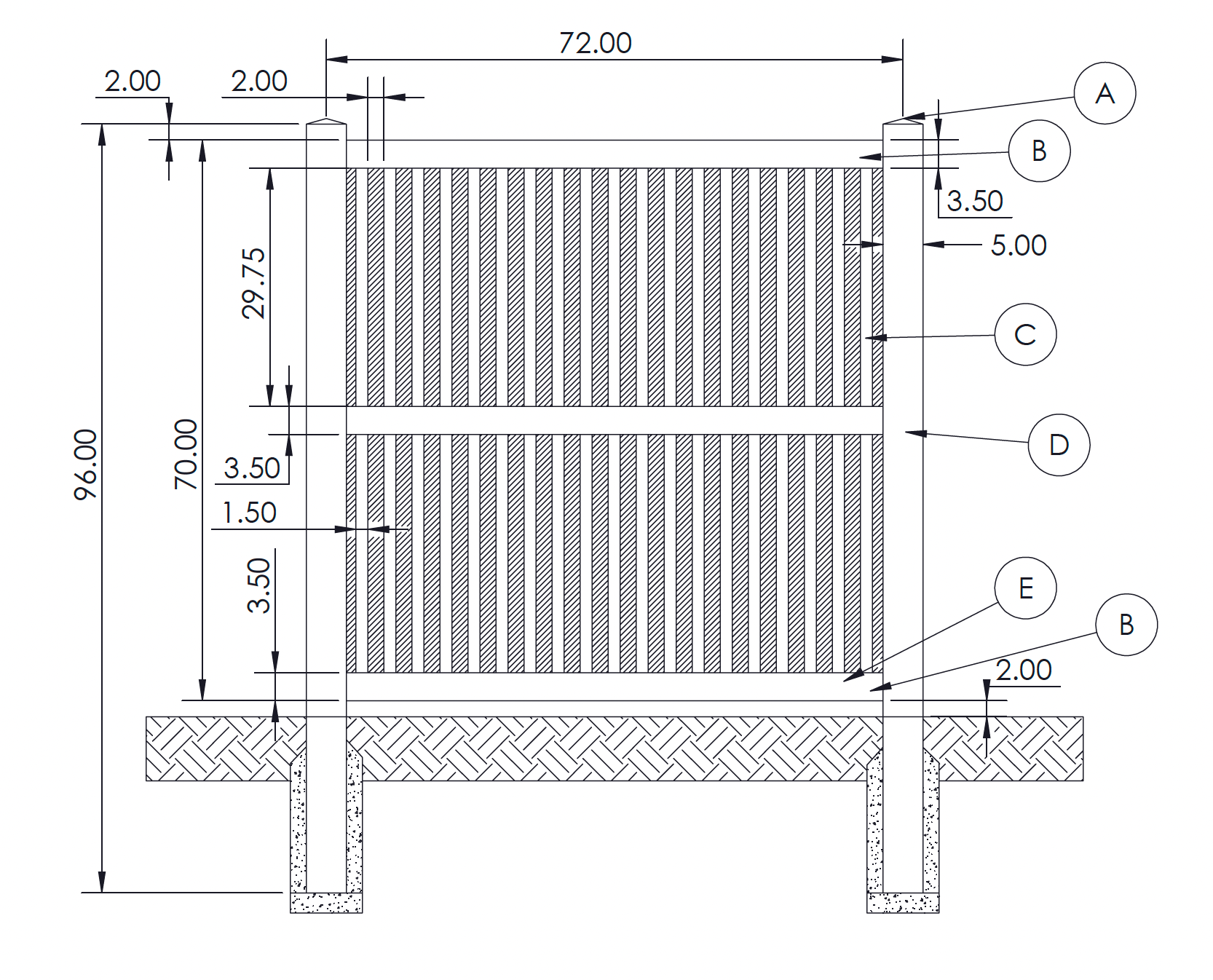

6' × 6' semi-private closed picket

2" × 3½"

Hollow Rail

⅞" × 1 ½"

Pickets

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 72" Standard Post
C	3	F24E	2" × 3 ½" × 72" Hollow Rail
D	40	F42S	1 ½" × 1 ½" × 44" Pickets
E	1	1G24PA288	72" Aluminum P-Channel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

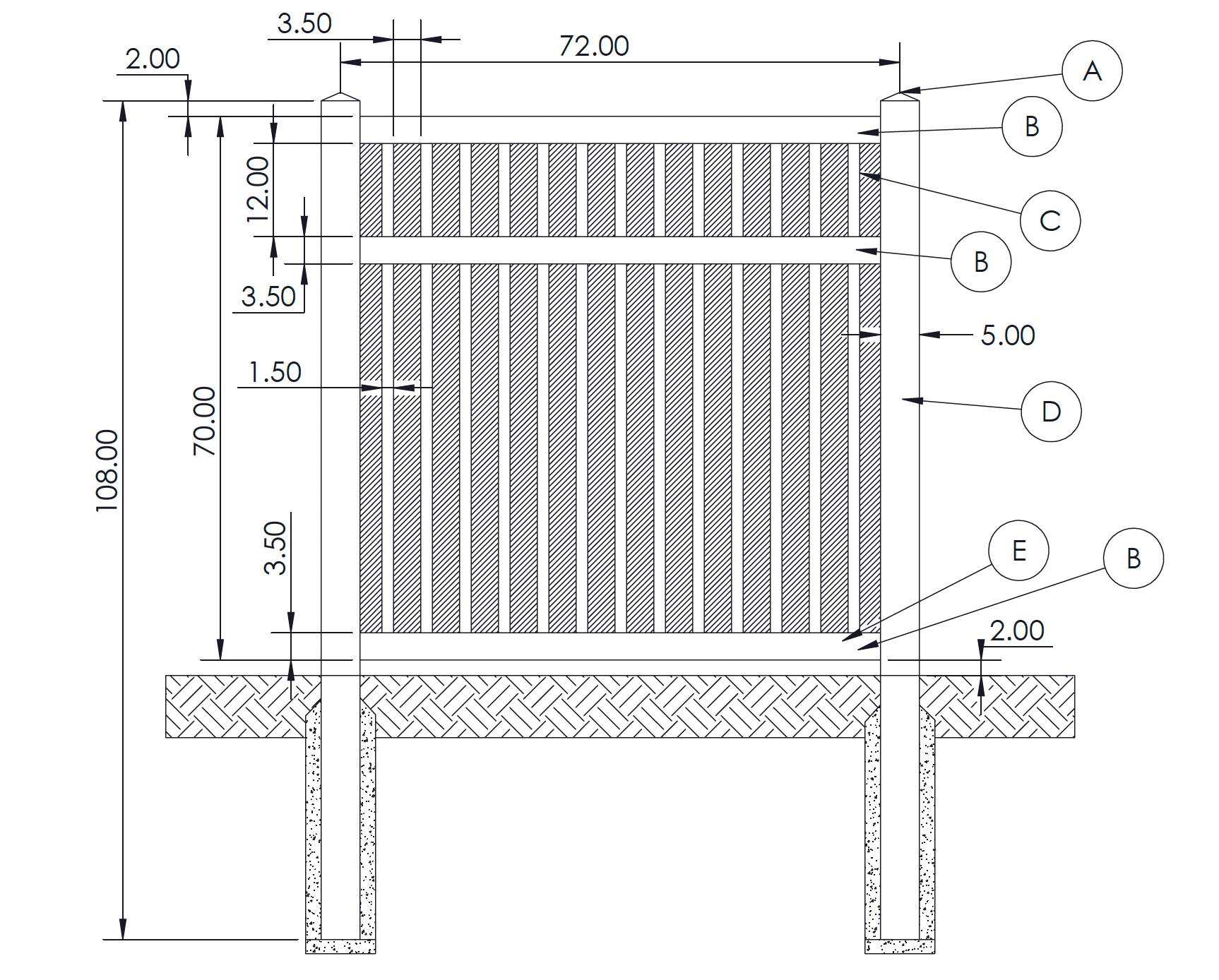

6' × 6' semi-private closed picket

2" × 3½"

Hollow Rail

⅞" × 1 ½"

Pickets

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Standard Post
C	3	F24E	2" × 3 ½" × 72" Hollow Rail
D	13	F65S	⅞" × 1 ½" × 67 ½" Pickets
E	1	1G24PA288	72" Aluminum P-Channel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Nexus Privacy

1 ¾" × 7"

Nexus Pocket Rail

⅞" × 6"

Locking T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F3P7	1 ¾" × 7" × 70" Nexus Pocket Rail
C	11	F54L	⅞" × 6" × 62 ¼" Locking Picket
D	2	F83U	⅞" × 58 ¾" Trim Channel
E	2	F10C	5" × 5" × 108" Co-Extruded Utility Post

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

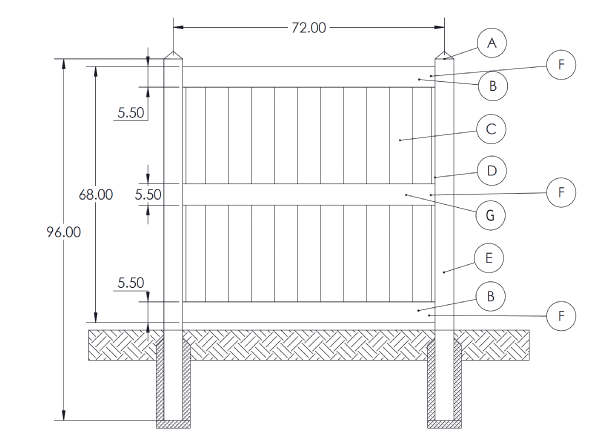

6' × 6' homewood Privacy

1 ½" × 5 ½"

Gorilla Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	3	F32G	1 ½" × 5 ½" × 71 ½" Gorilla Pocket Rail
C	22	F54G	⅞" × 6" × 29" T&G
D	4	F83U	⅞" × 25 ¾" Trim Channel
E	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
F	3	G3RFH121	1-1/2" x 71-1/2" Steel Insert

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

1 ¾" × 5 ½"

Nexus Mid-Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F37C	1 ¾" × 5 ½" × 71 ½" Gorilla Pocket Rail
C	22	F54G	⅞" × 6" × 30 ½" T&G
D	1	F3PM	1 ¾" × 5 ½" × 71 ½" Nexus Mid-Rail
E	4	F83U	⅞" × 27 ⅛" Trim Channel
F	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
G	3	G3RFM147	1 ¾" × 71 ½" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Gorilla Privacy

1 ½" × 5 ½"

Gorilla Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F32G	1 ½" × 5 ½" × 76" Gorilla Pocket Rail
C	6	F61S	⅞" × 11.3" × 62 ¼" Gorilla T&G
D	2	F83U	⅞" × 58 ⅞" Trim Channel
E	2	F10C	5" × 5" × 96" Co-Extruded Utility Post

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Gorilla Privacy

1 ½" × 5 ½"

Gorilla Pocket Rail

⅞" × 11.3"

Locking T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F32G	1 ½" × 5 ½" × 76" Gorilla Pocket Rail
C	6	F61L	⅞" × 11.3" × 62 ¼" Locking T&G
D	2	F83U	⅞" × 58 ⅞" Trim Channel
E	2	F10C	5" × 5" × 96" Co-Extruded Utility Post

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Gorilla Privacy

1 ½" × 8"

Gorilla Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F3P1	1 ½" × 8" × 76" Gorilla Pocket Rail
C	6	F61S	⅞" × 11.3" × 55 ¼" Gorilla T&G
D	2	F83U	⅞" × 52" Trim Channel
E	2	F10C	5" × 5" × 96" Co-Extruded Utility Post

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Gorilla Privacy

1 ½" × 5 ½"

Gorilla Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F32G	1 ½" × 5 ½" × 71 ½" Gorilla Pocket Rail
C	11	F54G	⅞" × 6" × 60 ¼" T&G
D	1	F83U	⅞" × 57 ½" Trim Channel
E	2	F10C	5" × 5" × 96" Co-Extruded Utility Post

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

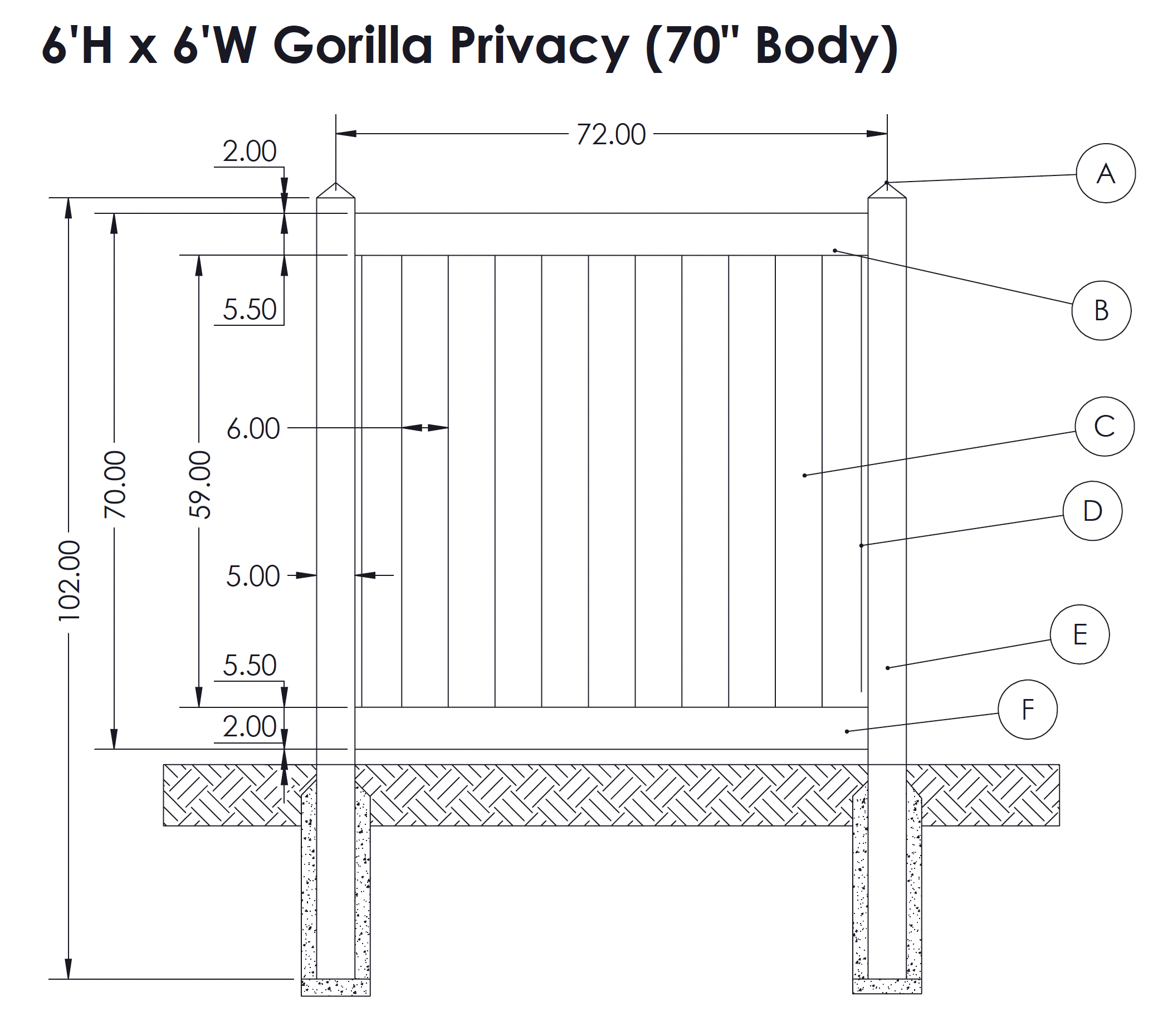

6' × 6' Gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F37C	1 ¾" × 5 ½" × 69 ½" Gorilla Pocket Rail
D	11	F54G	⅞" × 6" × 62" T&G
E	2	F83U	⅞" × 59" Trim Channel
F	1	G3RFM147	1 ¾" × 68 ½" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Privacy w/Lattice

1 ¾" × 7"

Nexus Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

12" × 96"

Lattice

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	1	F25B	1 ¾" × 3 ½" × 69 ½" Hollow Standard
D	1	LPRECUT	12" × 96" Lattice Pannel
E	2	F3P7	1 ¾" × 7" × 69 ½" Nexus Pocket Rail
F	11	F54G	⅞" × 6" × 48" T&G
G	2	F83U	⅞" × 45" Trim Channel
H	2	F83U	⅞" × 9.5" Trim Channel
i	1	G3RFM147	1 ¾" × 68 ½" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

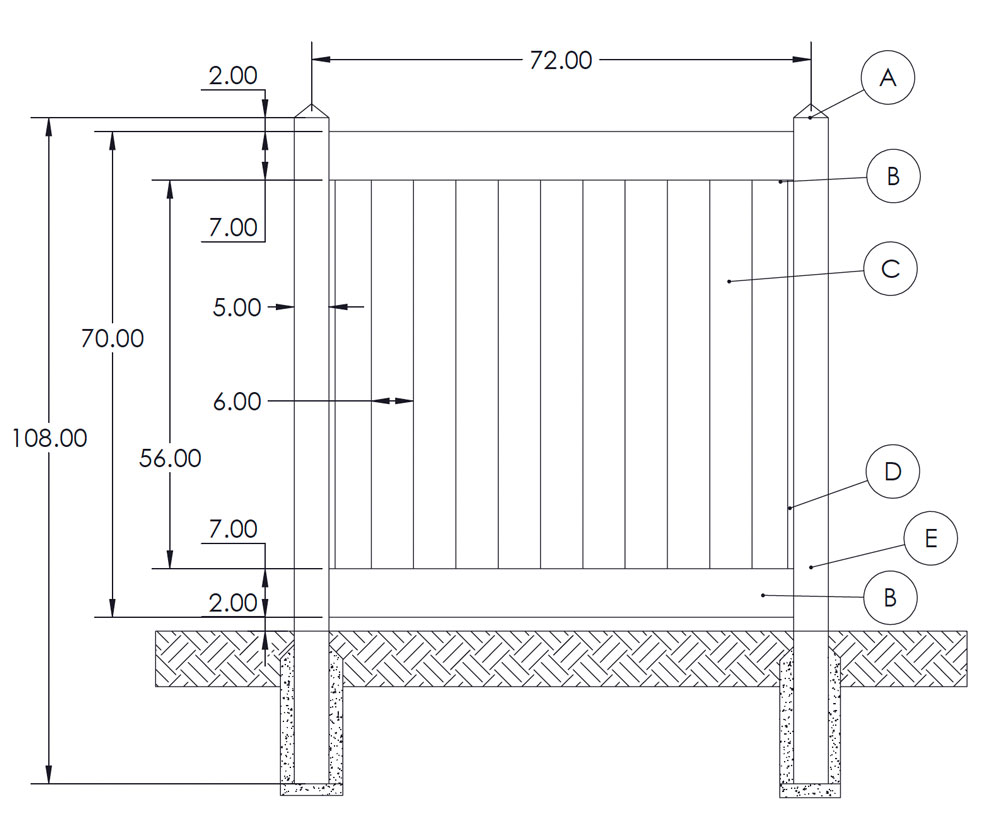

6' × 6' Nexus Privacy

2" × 7"

Nexus Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F3P2	2" × 7" × 70" Nexus Pocket Rail
D	11	F54G	⅞" × 6" × 59 ½" T&G
E	2	F83U	⅞" × 56" Trim Channel
F	1	G3RFH148	2" × 69" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Sun Privacy

2" × 7"

Sun Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	FFS7	2" × 7" × 70" Sun Pocket Rail
D	11	F54G	⅞" × 6" × 59 ½" T&G
E	2	F83U	⅞" × 56" Trim Channel
F	1	G3RFH148	2" × 69" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Nexus Privacy

1 ¾" × 5 ½"

Nexus Pocket Rail

1 ¾" × 5 ½"

Nexus Mid-rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F3P5	1 ¾" × 5 ½" × 69 ½" Nexus Pocket Rail
D	1	F3PM	1 ¾" × 5 ½" × 69 ½" Nexus Mid-Rail
E	22	F54G	⅞" × 6" × ²⁹ ⁵⁄₈" T&G
F	4	F83U	⅞" × ²⁶ ¹¹⁄₁₆" Trim Channel
G	1	G3RFM147	1 ¾" × 68 ½" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
C	2	F37C	1 ¾" × 5 ½" × 71" Gorilla Pocket Rail
D	6	F61S	⅞" × 11.3" × 62" T&G
E	2	F83U	⅞" × 59" Trim Channel
F	1	G3RFM147	1 ¾" × 70" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Nexus Privacy

2" × 7"

Nexus Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
C	2	F3P2	2" × 7" × 71 ½" Nexus Pocket Rail
D	6	F61S	⅞" × 11.3" × 59 ½" T&G
E	2	F83U	⅞" × 56" Trim Channel

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 6' Gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

⅞" × 14"

No Emboss Panel

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
C	2	F37C	1 ¾" × 5 ½" × 72" Gorilla Pocket Rail
D	5	F55B	⅞" × 14" × 66" Gorilla Privacy No Emboss Panel

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

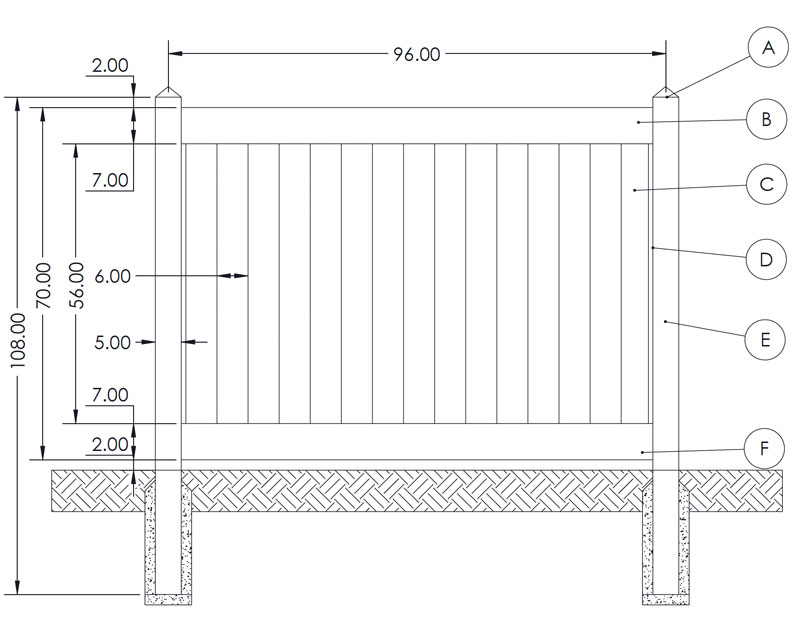

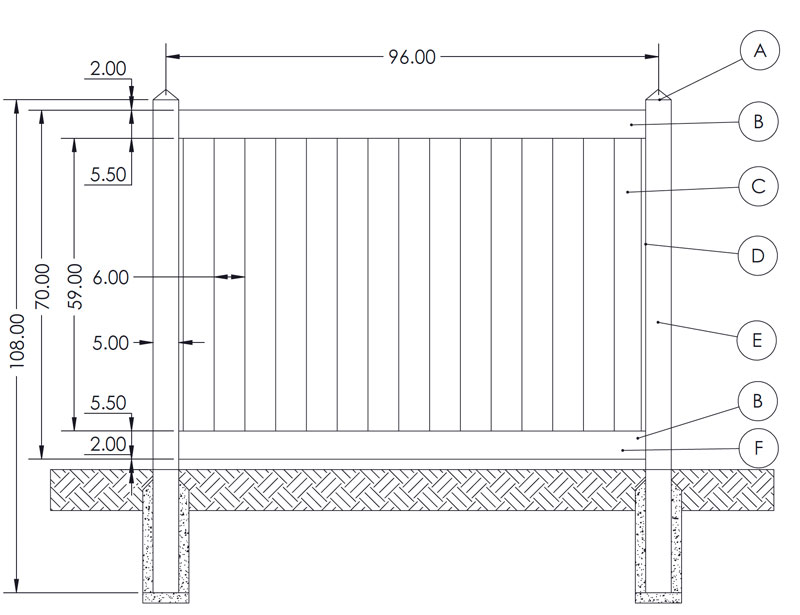

6' × 8' Nexus Privacy

2" × 7"

Nexus Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F3P2	2" × 7" × 94" Nexus Pocket Rail
D	15	F54G	⅞" × 6" × 59 ½" T&G
E	2	F83U	⅞" × 56" Trim Channel
F	1	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

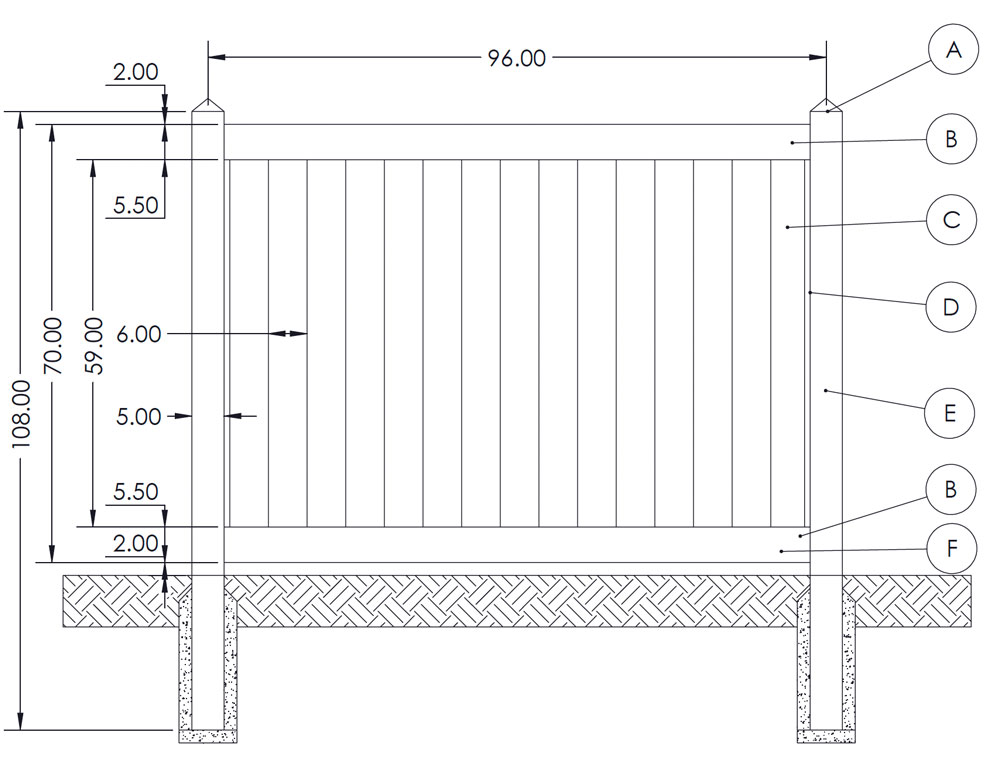

6' × 8' gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F37C	1 ¾" × 5 ½" × 94" Gorilla Pocket Rail
C	15	F54G	⅞" × 6" × 62 ¼" Gorilla T&G
D	2	F83U	⅞" × 59 ¼" Trim Channel
E	2	F10E	5" × 5" × 96" Co-Extruded Utility Post
F	1	G3RFM147	1 ¾" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

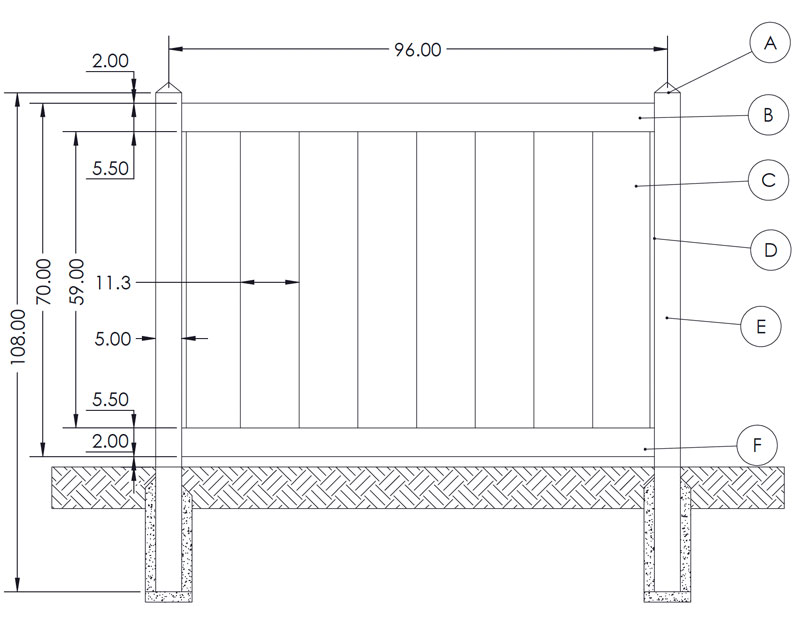

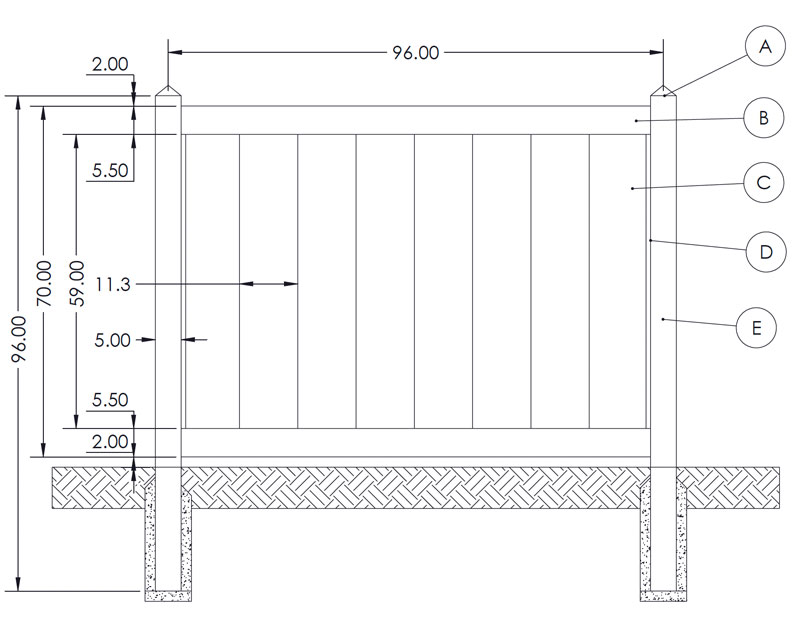

6' × 8' Gorilla Privacy

1 ½" × 5 ½"

Gorilla Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F32G	1 ½" × 5 ½" × 76" Gorilla Pocket Rail
C	6	F61S	⅞" × 11.3" × 62 ¼" Gorilla T&G
D	2	F83U	⅞" × 58 ⅞" Trim Channel
E	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
F	1	G3RFH121	1 ½" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

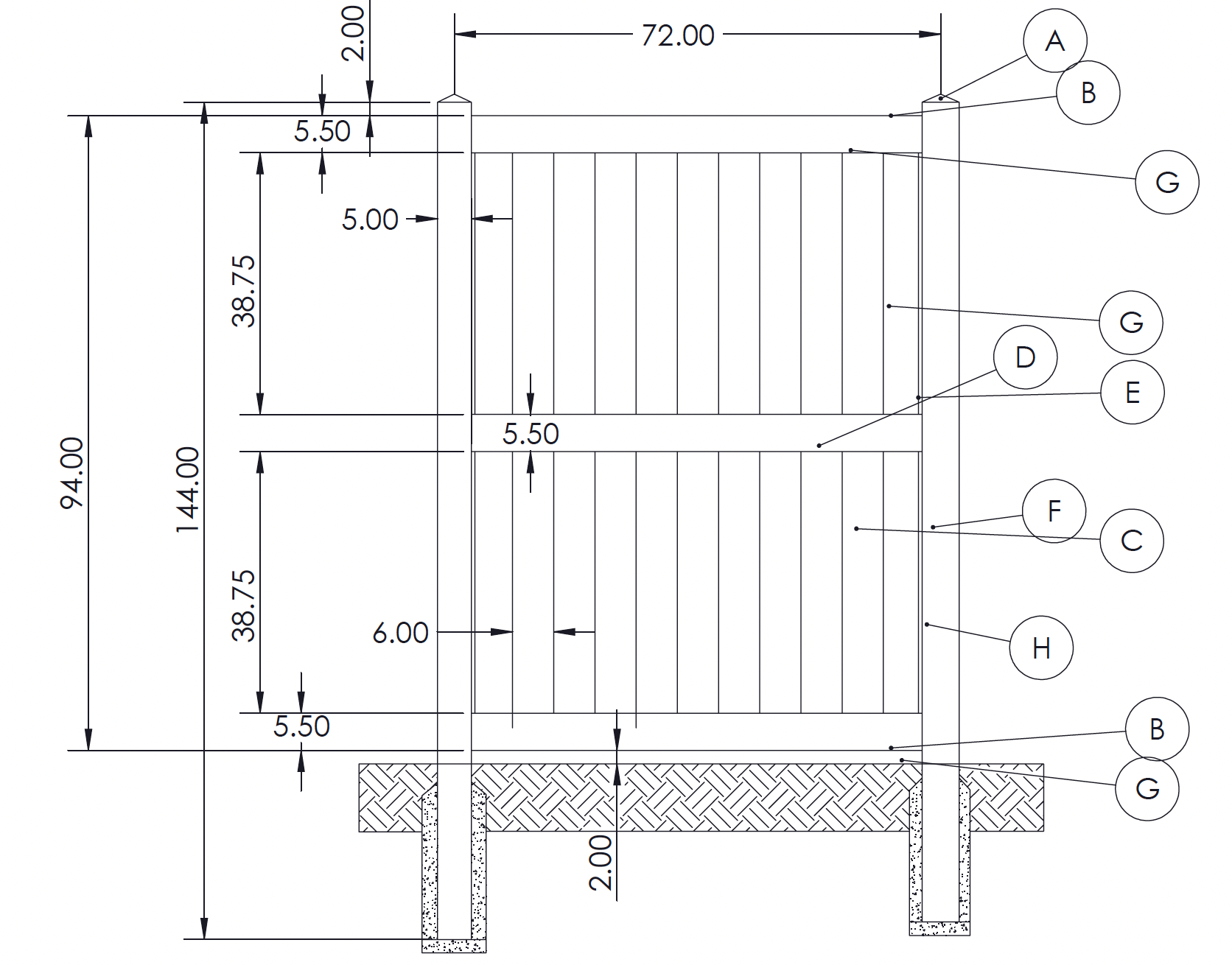

6' × 8' keystone Homewood Privacy

2" × 7"

Keystone Pocket Rail

1 ¾" × 5 ½"

Nexus Mid-Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	FKE7	2" × 7" × 94" Keystone Pocket rail
D	1	F3PM	1 ¾" × 5 ½" × 94" Nexus Mid-Rail
E	30	F54G	⅞" × 6" × 29" Gorilla T&G
F	4	F83S	26" U-Channel, 4 Screws per side in the post
G	1	G3RFM147	1 ¾" × 93" Steel Rail Insert In Mid-Rail
G	2	G3RFH148	2" × 93" Steel Rail Insert In Top and Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Keystone Privacy

2" × 7"

Keystone Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	FKE7	2" × 7" × 94" Keystone Pocket rail
D	15	F54G	⅞" × 6" × 61" Gorilla T&G
E	4	F83U	⅞" × 58" Trim Channel
F	2	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Nexus Privacy

2" × 7"

Nexus Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F3P2	2" × 7" × 94" Nexus Pocket rail
D	15	F54G	⅞" × 6" × 61" Gorilla T&G
E	2	F83U	⅞" × 58" Trim Channel
F	2	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Sun Privacy

2" × 7"

Sun Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	FFS7	2" × 7" × 94" Sun Pocket rail
D	15	F54G	⅞" × 6" × 61" Gorilla T&G
E	2	F83U	⅞" × 58" Trim Channel
F	2	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Homewood Privacy

1 ¾" × 5 ½"

Nexus Pocket Rail

1 ¾" × 5 ½"

Nexus Mid-Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F3P5	1 ¾" × 5 ½" × 94" Nexus Pocket rail
D	1	F3PM	1 ¾" × 5 ½" × 94" Nexus Mid-Rail
E	30	F54G	⅞" × 6" × 30 ½" T&G
F	4	F83U	27 ⅛" U-Channel
G	3	G3RFM147	1 ¾" × 93" Steel Rail Insert In All Rails

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Homewood Privacy

1 ¾" × 5 ½"

Nexus Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F3P5	1 ¾" × 5 ½" × 94" Nexus Pocket rail
D	15	F54G	⅞" × 6" × 64" T&G
E	2	F83U	60 ⅞" U-Channel, 4 Screws per side in the post
F	3	G3RFM147	1 ¾" × 93" Steel Rail Insert In Top and Bottom Rails

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Keystone Homewood Privacy

2" × 7"

Keystone Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	FKE7	2" × 7" × 94" Keystone Pocket rail
D	15	F54G	⅞" × 6" × 61" T&G
E	2	F83U	58" U-Channel, 4 Screws per side in the post
F	1	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Nexus Privacy w/lattice

1 ¾" × 5 ½"

Nexus Pocket Rail

⅞" × 6"

T&G

12" × 96"

Lattice

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	1	F25B	1 ¾" × 3 ½" × 96" Hollow Standard
D	1	LPRECUT	12" × 96" Lattice Pannel
E	2	F3P5	1 ¾" × 5 ½" × 96" Nexus Pocket rail
F	15	F54G	⅞" × 6" × 49" T&G
G	2	F83U	46" Trim Channel
H	2	F83U	9 ½" Trim Channel
I	1	G3RFM147	1 ¾" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Privacy w/lattice

2" × 6"

Ribbed Rail

⅞" × 6"

T&G

12" × 96"

Lattice

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F24E	2" × 3 ½" × 9" Hollow Standard
D	1	LPRECUT	12" × 96" Lattice Pannel
E	1	F22C	2" × 6" × 94" Ribbed rail
F	13	F54G	⅞" × 6" × 49" T&G
G	2	F83U	9 ½" Trim Channel
H	1	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Nexus Privacy

1 ¾" × 5 ½"

Nexus Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F3P5	1 ¾" × 5 ½" × 94" Nexus Pocket rail
D	15	F54G	⅞" × 6" × 62" T&G
E	2	F83U	59" Trim Channel
F	1	G3RFM147	1 ¾" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F37C	1 ¾" × 5 ½" × 94" Gorilla Pocket rail
D	15	F54G	⅞" × 6" × 62" T&G
E	2	F83U	59" Trim Channel
F	1	G3RFM147	1 ¾" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F37C	1 ¾" × 5 ½" × 94" Gorilla Pocket rail
D	15	F54G	⅞" × 6" × 62 ¼" T&G
E	2	F83U	59" Trim Channel
F	1	G3RFM147	1 ¾" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Nexus Privacy

2" × 7"

Nexus Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	F3P2	2" × 7" × 94" Nexus Pocket rail
D	15	F54G	⅞" × 6" × 61" T&G
E	2	F83U	58" Trim Channel
F	1	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Sun Privacy

2" × 7"

Sun Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 108" Co-Extruded Utility Post
C	2	FFS7	2" × 7" × 94" Sun Pocket rail
D	15	F54G	⅞" × 6" × 59" T&G
E	2	F83U	56" Trim Channel

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Nexus Privacy

2" × 7"

Nexus Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
C	2	F3P2	2" × 7" × 94" Nexus Pocket rail
D	8	F61S	⅞" × 11.3" × 59" T&G
E	2	F83U	56" Trim Channel

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Gorilla Privacy

1 ½" × 5 ½"

Gorilla Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
C	2	F32G	1 ½" × 5 ½" × 95 ½" Gorilla Pocket rail
D	8	F61S	⅞" × 11.3" × 63" T&G
E	2	F83U	58 ⅞" Trim Channel

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
C	2	F37C	1 ¾" × 5 ½" × 95 ½" Gorilla Pocket rail
D	8	F61S	⅞" × 11.3" × 62" T&G
E	2	F83U	59" Trim Channel
F	1	G3RFM147	1 ¾" × 94 ½" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' gorilla Privacy

1 ¾" × 5 ½"

Gorilla Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
C	2	F37C	1 ¾" × 5 ½" × 95 ½" Gorilla Pocket rail
D	8	F61S	⅞" × 11.3" × 62 ¼" T&G
E	2	F83U	59" Trim Channel

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

6' × 8' Gorilla Privacy

1 ½" × 5 ½"

Gorilla Pocket Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 96" Co-Extruded Utility Post
C	2	F32G	1 ½" × 5 ½" × 95 ½" Gorilla Pocket rail
D	8	F61S	⅞" × 11.3" × 62 ¼" T&G
E	2	F83U	58 ⅞" Trim Channel

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

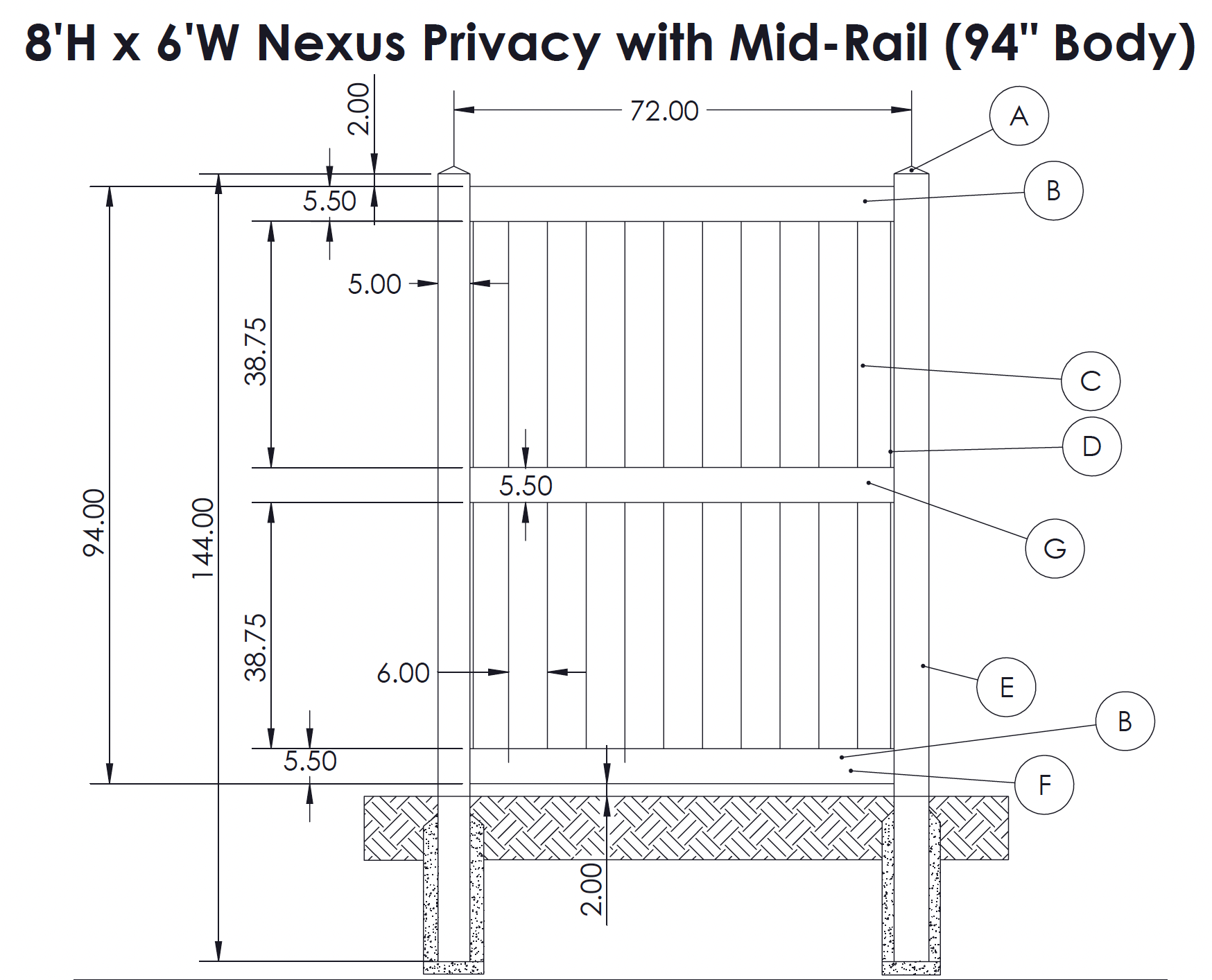

8' × 6' Nexus Privacy

1 ¾" × 5 ½"

Nexus Pocket Rail

1 ¾" × 5 ½"

Nexus Mid-Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 132" Co-Extruded Utility Post
C	2	F3P5	1 ¾" × 5 ½" × 69 ½" Nexus Pocket rail
D	22	F54G	⅞" × 6" × ⁴¹ ⁵⁄₈" T&G
E	4	F83U	³⁸ ¹¹⁄₁₆" Trim Channel
F	1	G3RFM147	1 ¾" × 69 ½" Steel Rail Insert In Bottom Rail
G	1	F3PM	1 ¾" × 5 ½" × 69 ½" Nexus Mid-Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

8' × 6' Nexus Privacy

1 ¾" × 5 ½"

Nexus Pocket Rail

1 ¾" × 5 ½"

Nexus Mid-Rail

⅞" × 11.3"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 132" Co-Extruded Utility Post
C	2	F3P5	1 ¾" × 5 ½" × 71" Nexus Pocket rail
D	1	F3PM	1 ¾" × 5 ½" × 72" Nexus Mid-Rail
E	12	F61S	⅞" × 11.3" × 41" T&G
F	4	F83U	38" Trim Channel
G	1	G3RFM147	1 ¾" × 71" Steel Rail Insert In Bottom Rail
H	1	G3RFM147	1 ¾" × 71" Steel Rail Insert In Mid-Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

8' × 6' Sun Privacy

2" × 7"

Sun Pocket Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 132" Co-Extruded Utility Post
C	2	FFS7	2" × 7" × 69 ½" Sun Pocket rail
D	11	F54G	⅞" × 6" × 83" T&G
E	2	F83U	80" Trim Channel
F	1	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.

8' × 8' Nexus Privacy

2" × 7"

Nexus Pocket Rail

1 ¾" × 5 ½"

Nexus Mid-Rail

⅞" × 6"

T&G

5" × 5"

Post

Key	QTY	Item Key	Description
A	2	C55PRYA	5" × 5" Pyramid Cap
B	2	F10C	5" × 5" × 132" Co-Extruded Utility Post
C	2	F3P2	2" × 7" × 94" Nexus Pocket rail
D	1	F3PM	1 ¾" × 5 ½" × 94" Nexus Mid-Rail
E	30	F54G	⅞" × 6" × 40" T&G
F	4	F83U	37 ⅛" Trim Channel
G	1	G3RFH148	2" × 93" Steel Rail Insert In Bottom Rail
H	1	G3RFM147	1 ¾" × 71" Steel Rail Insert In Mid-Rail

Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.
