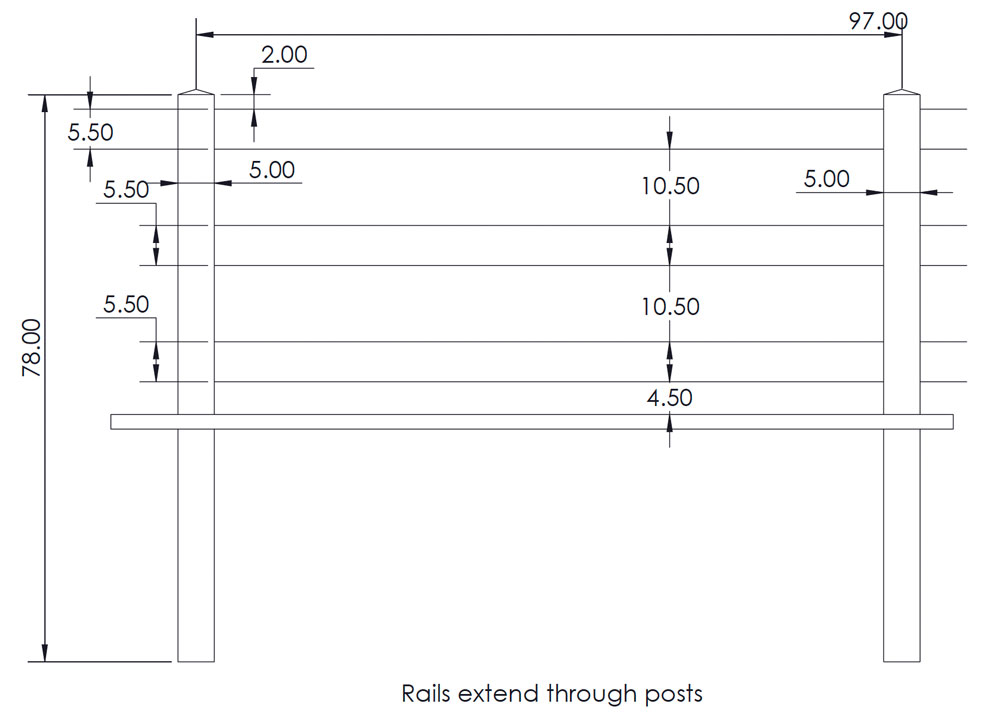

Route Pattern
Three Ranch Rail
1 ½" × 5 ½"
Utility Value Rail
5" × 5"
Post
#HVRR-11
| QTY | Item Key | Description |
|---|---|---|
| 2 | C55PYRA | 5" × 5" External Pyramid Post Cap |
| 3 | F27M | 1½" × 5½" × 192" Co-Ex Utility Value Rail |
| 2 | F10J | 5" × 5" × 78" Co-Ex Utility Ranch Post |
Prior to installation, consult your local building department to address applicable building codes.
Please refer to the appropriate guideline documents available on this app for proper installation.
